Product Description
State-of-the-art simplicity with the standard-keyboard and the high resolution display
Low number of operating elements, whose functions are immediately apparent
At-a-glance viewing on the largest high-resolution display in its class
Optimally suited to new users and all those on the construction site who do not use the instrument daily
Best-in-class Electronic Distance Measurement (EDM)
With PinPoint EDM, FlexLine plus delivers the optimal balance of range, accuracy, reliability, beam visibility, laser dot size and measurement time.
1.5 mm + 2 ppm to prism
2 mm + 2 ppm to any surface
Extremely fast (2 seconds)
500 m range without a prism
Coaxial laser pointer and measurement beam
Work intuitively with the new Leica FlexField plus onboard software
Low learning curve due to guided workflows
Easy to understand graphics and icons
Icons to quickly verify instrument status
Faster operation due to graphics which make the interpretation of measurement values or text no longer necessary
Theft protection by Leica Geosystems - mySecurity
mySecurity gives you total peace of mind
If your instrument is ever stolen, a locking mechanism is available to ensure that the device is disabled and can no longer be used
Angle Measurement (Hz, V) |
| Accuracy 1) 3" (1 mgon) / 5" (1.5 mgon) |
| 7" (2 mgon) ü |
| Method Absolute, continuous, |
| diametrical: at all models ü |
| Display resolution 0.1" / 0.1 mgon / 0.01 mil ü |
| Compensation Quadruple Axis compensation: |
| at all models ü |
| Compensator Setting Accuracy 1" / 1.5" / 2" ü |
| Compensator range 0.07 gon ü |
| Endless Drives Smooth movements with no |
| delayed response time ü |
| Distance Measurement with Reflector |
| Range 2) Round prism (Leica GPR1) 3.500 m ü |
| Range 2) Reflective tape |
| (60 mm x 60 mm) |
| 250 m |
| > 500 m 8) ü |
| Accuracy 3) Precise+: 1.5 mm + 2.0 ppm |
| Precise Fast: 2.0 mm + 2.0 ppm |
| Tracking: 3.0 mm + 2.0 ppm |
| ü |
| Typical Measurement time 4) 2.0 s ü |
| Measurement time while in |
| Precise+ mode |
| 2.4 s ü |
| Distance Measurement without Reflector 7) |
| Range 5) PinPoint R500 500 m ¢ |
| Accuracy 3) 2 mm + 2 ppm ü |
| Laser dot size At 30 m: approx. 7 x 10 mm |
| At 50 m: approx. 8 x 20 mm ü |
| Data storage / Communication |
| Internal memory Max.: 24'000 fixpoints, |
| Max.: 13'500 measurements ü |
| Interfaces Serial (Baudrate up to 115'200) ü |
| Data formats GSI / DXF / LandXML / CSV / |
| user definable ASCII formats ü |
| Telescope |
| Magnification / Resolving power 30 x / 3" ü |
| Field of View 1° 30' (1.66 gon) |
| 2.7 m at 100 m ü |
| Focusing range 1.7 m to infinity ü |
| Reticle Illuminated, 10 brightness levels |
Keyboard and Display |
| Keyboard and Display Simple Alpha-numerical keyboard |
| with high resolution Black & |
| White display, Graphics, 160 x |
| 288 pixels, display |
| illuminated, 5 brightness levels |
| ü |
| Position Face I, Face II ü¢ |
| Operating System |
| Windows CE 5.0 Core ü |
| Laserplummet |
| Type Laser point, 5 brightness levels ü |
| Centering accuracy 1.5 mm at 1.5 m ü |
| Battery |
| Type Lithium-Ion ü |
| Operating time 6) approx. 30 hours ü |
| Battery charging time 2.3 hours ü |
| Weight |
| TS including GEB211 and tribrach 5.1 kg ü |
| Environmental |
| Temperature range (operation) -20° C to +50° C |
| (-4° F to +122° F) ü |
| Arctic Version -35° C to 50° C |
| (-31° F to +122° F) ¢ |
| Dust / Water (IEC 60529) Humidity IP55, 95%, non condensing ü |
| Leica FlexField plus Onboard Sofware |
| Included Application Programs: Survey; Stake Out; Station Setup |
| including: Resection, Local Resection, Helmert Resection, Orientation |
| (Angles & Coordinates), Height Transfer; Area (Plan & Surface); |
| DTM Volume calculation; Tie Distance (MLM); Remote Height; Hidden |
| Point; Backsight Check; Offset; Reference Line; |
| ü |
| Extra Application Programs: Reference Arc; Reference Plane; COGO; |
| Road 2D ¢ |
| Theft protection |
| mySecurity, PIN/PUK Code üü |
We can use the different international express company, usually, our first choice is DHL. if you have specified requirement , please inform us before the order.
Our Services
your inquiry will be replied within 24 hours, we welcome your email and call at any time.
our products are original and 100% new. and they will be carefully checked before we ship them out.
we provide one year quality warranty, within one year since you bought the products from us, you will get our technology support.
Company Information
Shanghai Galxy International Trade company, Ltd. combining with developing, researching and producing. Our company is located in Pudong Developing Zone, and has two subsidiary companies: Shanghai Galaxy International Trade Co., Ltd. and Mato Opto-electrical High-tech Company. Our company has researching center and factory in Changzhou.
Our main products are as following: total station, electronic theodolite, automatic level, laser level, rotation laser, GPS, distance laser sensor and accessories, such as tripod, prism, pole, staff and USB cable for total station. Our company designs software for many domestic and oversea factories, for example, Boif, TJOP, Stanley, and Cst-Berger. We have powerful capacity in technical research, and the products we designed have advanced technology and steady performance. The non-prism total station and the absolute coding measure instrument we developed and produced have very competitive points in the measure instrument market.
We expect that we could cooperate with more business partners from all over the world. In addition, we can do OEM service for companies or dealers that want to find better producers in China.
Our goal is to produce the best surveying instruments in the world.
Our target is to globalize the market, internationalize the quality and maximize the profit!
Product Tags:
|
|

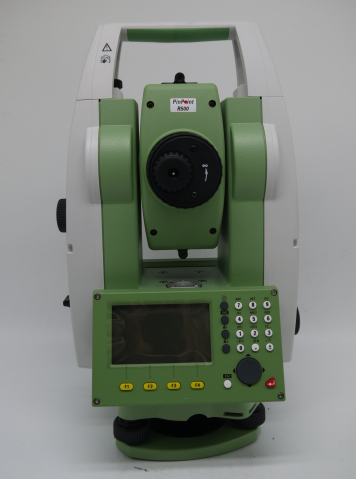

Second Hand Total Station Leica 02 Plus By Leica Geosystem With Non-Prism 500m Images
|
