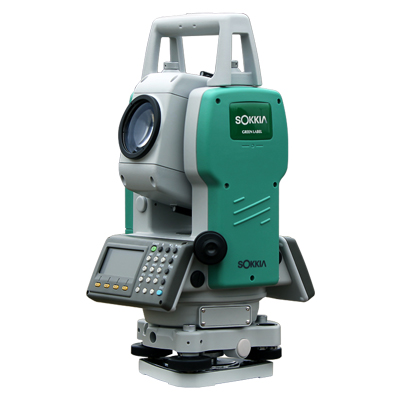

Sokkia Set02N Total Station

Name: Sokkia Set02N Total Station
Brand: Sokkia
Price: 1 USD

Place of Origin : China

Brand Name : Sokkia

Model Number : Set02N

MOQ : 1pc

Packaging Details : with standard exporting package

Delivery Time : within 3-5work days after the goods are paid .

Payment Terms : TT ,western Union

Supply Ability : 10000 Per Year

Contact Now

Sokkia Set02N Total Station :

Details:

Top quality.

Easy operation: Alphanumeric keyboard.

Complete application programs.

Xtended internal memory, max: 24000 points.

Long-time working battery: 10 hours.

Supprior waterproof. Dustproof capabilities. High accuracy and long measuring range.

Model		SET-02N
Telescope	Length	150mm
	Objective aperture	45mm(EDM: 50mm)
	Magnification	30 ×
	Image	Erect
	Field of view	1° 30'
	Resolving power	3.0 "
	Shortest focus	1.3m
Distance measurement section	Single prism	2, 000m
	Three prism	2700m
	Measuring Accuracy	± (2mm+2ppm× D)m. s. e
Measuring time (first time)	fine	1.2sec(4sec)
Measuring time (first time)	tracking	0.4sec(3sec)
Angle measurement section	Accuracy	2 "
	Method	Absolute encoder
	Minimum readout	1" /5 "
	Diameter of circle	71mm
displaying	display	Double sides
Tilt compensator	method	Single axis
Tilt compensator	range	± 3'
Level sensitivity	Circular level	10' /2mm
Level sensitivity	Plate level	30 " /2mm
Optical plummet	Magnification	3x
	Focus range	0.5m-∞
	Field of view	5°
Durability	Proof water and dust	IP54
Durability	Working temperature	-20
Power supply	Charger	TBC-2
	Battery	TBB-2, 2300mA 7.2V(NI-MH)
	Working time	45hours (angle measurement) 10hours (angle and distance measurement)
others	size	336H× 184W× 172L
	Weight(with battery)	4.9kg
	Data port	RS-232C
	Internal memory	24000points
